Excel XL-WV XLerator with HEPA FILTER REPLACEMENT CONTROL ASSEMBLY with SPEED & HEAT CONTROL (Part Ref. XL 7 / Stock# 40105)***
Order in the next
24 hours 00 minutes 00 seconds
to get same day shipping (Monday through Friday only)
XLERATOR Control Assembly with Speed & Heat Controls (Part Ref. XL 7 / Stock# 40105) for the High-Voltage Excel XL-WV XLerator WHITE EPOXY ZINC ALLOY AUTOMATIC HAND DRYER with HEPA FILTER
This Control Assembly (Stock# 40105) is rated for 110V to 277V.
*** Please note that this XLERATOR Control Assembly (Part Ref. XL 7 / Stock# 40105) applies to all XLERATOR with a HEPA FILTER. If you need assistance in determining the correct Control Board for your particular unit, please call 1-800-535-4393 for assistance.
** If your XLERATOR does NOT have a HEPA Filter AND has a Serial No. greater than 999999, please see the separate listing for the XLERATOR Control Assembly Part XL 7 / Stock# 40103.
** If your XLERATOR does NOT have a HEPA Filter AND has Serial No. between 900000 and 999999, please call 1-800-535-4393 for assistance.
* If your XLERATOR's Serial No. is less than 900000, please see the separate listing for the earlier XLERATOR Control Assembly Part XL 7 / Stock# 40102.

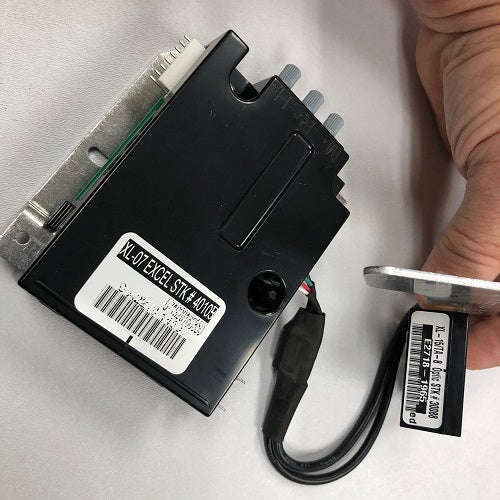

This Control Assembly (Stock # 40105) is the most recent version of the three available XLERATOR XL 7 Control Assemblies. Unlike the original Control Assembly (Stock# 40102), the 40103 and the 40105 allow for adjustments to the Motor Speed & Heating Element as well as Sensor Sensitivity or Range. But unlike either the 40102 and 40103, this 40105 is specifically calibrate & programmed to be used with current XLERATOR that also have the optional HEPA Filter installed. The HEPA filter allows for less air to pass through the dryer. The 40105 is electronically programmed to accommodate this fact. The 40103 Control assembly will work with the HEPA Filter, but you will most likely get a "clogged filter" code earlier than you actually should. Each Control Assembly (XL-7-10405) includes the Optic Sensor (Part Ref. XL 15 / Stock# 30088), the Control Circuit Board 40105, and the metal Mounting Brackets for both.

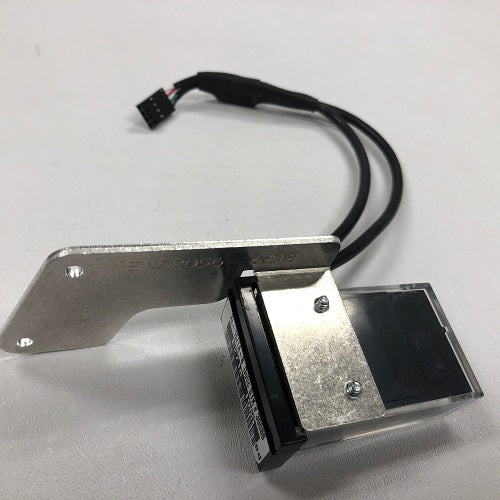

Please note that the Sensor (Part Ref. XL 15 / Stock# 30088) may also be purchased separately / individually. See separate listing.
You could buy an entirely new unit to replace your current high-voltage XL-WV XLerator (208V-277V) hand dryer. But with the correct replacement parts, you can keep your hand dryer in working condition at a fraction of the cost of replacing the entire unit.
HAND DRYER SHOWN FOR IDENTIFICATION PURPOSES ONLY
To purchase a complete replacement hand dryer for this model, please see the XL-W (208V-277V) XLerator listing.
