Replacement MOTOR for the ASI 0135-3 HAND DRYER (277V) - Part# 10-A0248

by ASI (American Specialties, Inc.)
Save 17%
$386.60
$318.95

Order in the next

24 hours 00 minutes 00 seconds

to get same day shipping (Monday through Friday only)

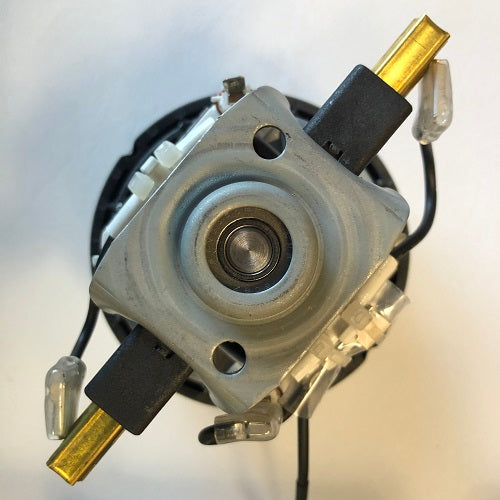

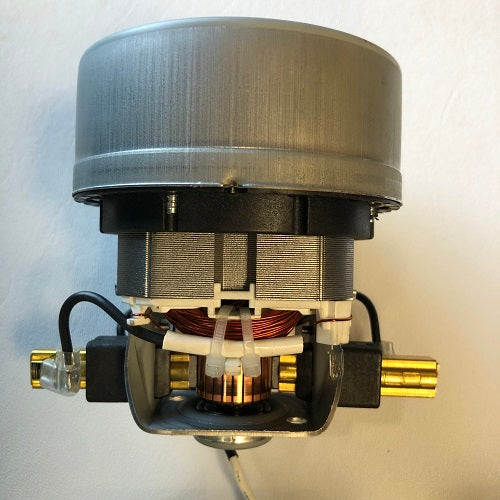

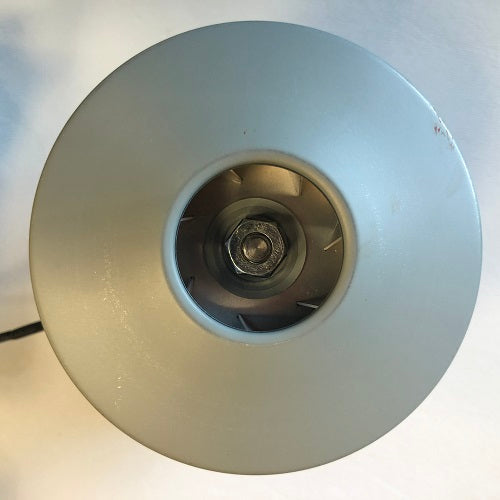

ASI MOTOR (Part# 10-A0248) for Model 10-0135-3  TURBO-Tuff (277V) Automatic, Satin Stainless Steel, Recessed Hand Dryer

PLEASE NOTE: This Motor (Part# 10-A0248) is specified for the TURBO Tuff 10-0135-3 (277V) Model.  If your 0135 is either a  0135-1 (110V/120V) or a 0135-2 (208V-240V), please see the correct Motor listing for your specific voltage.

This 0.67HP MOTOR is Brush Type / Dual Ball Bearing and is rated for 208V-240V, 50/60Hz, but is the correct motor for the 277V dryer.

Two Motor Brushes (Part# 10-A0246 - SET of 2) are included with the purchase of the Motor (Part# 10-A0248).  Replacement motor brushes (with spring cartridge) can also purchased separately.  See separate listing for Motor Brushes only.

Please note that this Motor Assembly (Part# 10-A0248) does not include the Lower (Part# A0251) or Upper (Part# A0168) Motor Rubber.  Please retain these two items from the older motor being replaced for re-use.

You could buy an entirely new unit to replace your AMERICAN SPECIALTIES 0135-3 hand dryer.  But with the correct replacement parts, you can keep your hand dryer in working condition at a fraction of the cost of replacing the entire unit.

HAND DRYER SHOWN FOR IDENTIFICATION PURPOSES ONLY

To purchase a complete replacement hand dryer for this model, please see the ASI 0135 listing.
