WORLD WA126-001 AirSpeed (110V/120V) REPLACEMENT MICRO SWITCH TIMER ASSY (Part# 125)
Order in the next
24 hours 00 minutes 00 seconds
to get same day shipping (Monday through Friday only)
Micro Switch Timer Assembly (Key 1) for the WORLD AirSpeed WA126-001 (110V/120V) CHROME-PLATED ALUMINUM COVER, SURFACE-MOUNTED, PUSH-BUTTON HAND DRYER (Part# 125 - Replaces the older 125-K & 125F-K)

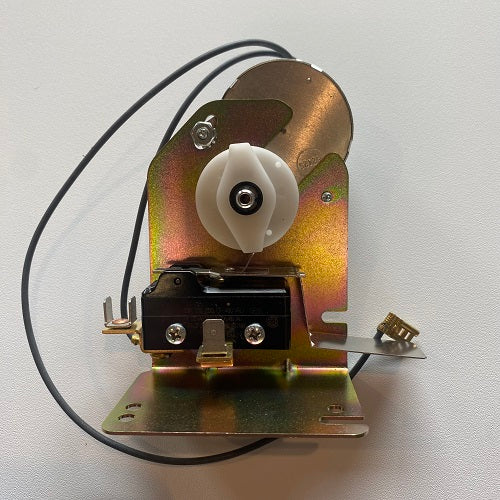

This Micro Switch - Timer Assembly (Part # 125) is rated for 110V/120V and has a preset 30-second run time.
IMPORTANT: The new, taller Part# 125 Timer Assembly you receive will likely look different than the original, shorter 125 Timer Assy you're replacing, but is is the correct replacement part. Specific to the “L-shaped” mounting bracket for this part, it is to be installed in the exact same location & configuration - regardless of old or new. When installed correctly and viewed from standing in front of the dryer, the microswitch lever will be pointing to the right side of the hand dryer (directly under the push button when the cover is re-installed). The white plastic disc and micro switch will seemed to have switched sides of the L-shaped mounting bracket when compared to the older style. The configuration of the timer assembly in the exploded view below is NOT correct for the newer 125 Timer Assembly.
Please note that neither the Timer nor the Micro Switch may be purchased individually / separately, but both parts are included in this Mirco Switch Timer Assy (Part# 125).
Please also note that the Mirco Switch Timer Assy formerly know as Part# 125-K or 125F-K is now Part# 125.
Although the chrome Air Speed WA126-001 Push-Button (110V/120V) hand dryer has recently been discontinued, most replacement parts are still readily available. Keep your hand dryer in working condition at a fraction of the cost of replacing the entire unit.
